ACE Drive Systems

Quality and performance are at the heart of what we do.

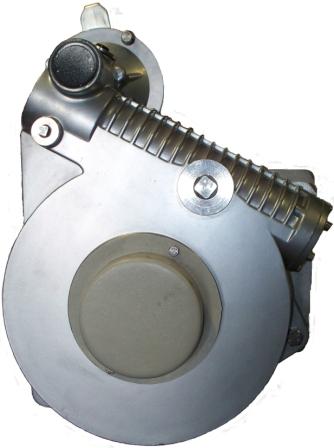

ACE E-Drive Systems

  • Double reductions worm gears with a 480:1 ratio
  • Specifiacally designed for boat lifts applications
  • Eliminates the chance of failure due to slipping belts or broken chains
  • 5 year manufacturer’s warranty on gears and housing
  • Oversized 1/2” grade 8 drive bolt
  • Smooth, noise free operation
  • 8,000 inch pounds of torque
  • Heavy duty die cast housing
  • No back drive potential
E-Drive

ACE Flat Plate

  • 10 Year structural warranty, one of the best in the industry
  • Aqua Marine’s Flat Plate has a 5 year warranty on the plate and gears for customers that have regular maintenance performed on their boat lift
  • Most popular & proven lift system for 60+ years
  • All Hardware and cable are 300 series stainless steel
FlatPlate

Flat Plate Lift Capacities:

  • 4,500#
  • 7,000#
  • 10,000#
  • 14,000#
  • 16,000#
  • 20,000#
  • 24,000#

Boat Lift Gear Box Comparison Chart

GEAR BOX RATIO INPUT HP OUTPUT TORQUE
Drive-System-Other-05 ACE E-Drive 480:1 1.0 4,000
Drive-System-Other-06 ACE Flat Plate 480:1 1.0 4,000
Drive-System-Other-01 other 500:1 1.42 3,356
Drive-System-Other-02 other 60:1 0.58 890
Drive-System-Other-03 other 60:1 0.40 864
Drive-System-Other-03 other 60:1 0.47 620
